EC Piles® are premium quality reinforced concrete piles manufactured to the highest quality standards by EC Precast Sdn Bhd, an ISO 9001:2015 certified company renowned for quality, technical expertise and its service excellence.

Designed to be durable, flexible and easy to assemble which conforms to the BS8004 - 1986 standard, these piles are manufactured in a variety of sizes, ranging from 125mm x 125mm to 450mm x 450mm to provide customers with more cost effective values.

EC Piles are suitable to be used for all foundation works of small and large construction such as buildings, residential homes, infrastructures, industrial areas, factories, schools, riverside areas, places of worship and many other public facilities due to its flexibility to fit various types of piles shoes when faced with a range of soil conditions.

RCCP (Reinforced Concrete Composite Piles)

EC Piles are specially made from Reinforced Concrete Composite Piles (RCCP), an improvement from Reinforced Concrete Piles (RCP) which was previously used by the company.

In 2018, the development of Reinforced Concrete Composite Piles (RCCP) was officially introduced to the concrete piles industry.

RCCP Benefits:

  • Increase flexural strength
  • Increase concrete ductility
  • Impact resistant with improved crack control and concrete toughness
  • Higher energy absorption with less little to no peel off or chip off issues

Technical Calculations


Capacity of EC Piles+ in accordance to standards specified. Safe working load = 0.275fcu·Ac + fsc·As where,

fcu = characteristic strength of concrete at 28 days (50N/mm2)
Ac = area of concrete
As = area of main reinforcement
fsc = 175N/ mm2 for high yield steel

Material Specifications


Constituent Materials

Cement MS 522 / BS EN 197-1
Steel Reinforcement BS 4449:1997 / MS 146:2014
Aggregates BS 882 / MS 29
Admixture BS 5075 / MS 922 Super Plasticizer
Cold Drawn Wire BS 4482 / MS 144
Fibre EN 14651, EN 14889-1&2 ASTM C1116
Mild steel plate BS EN 10137-1 End plate (Grade 43A)

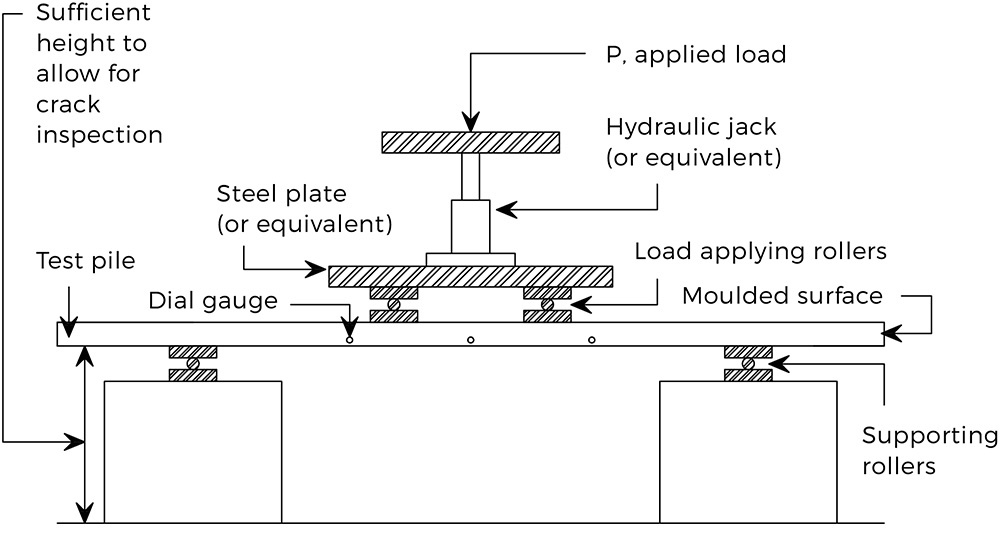

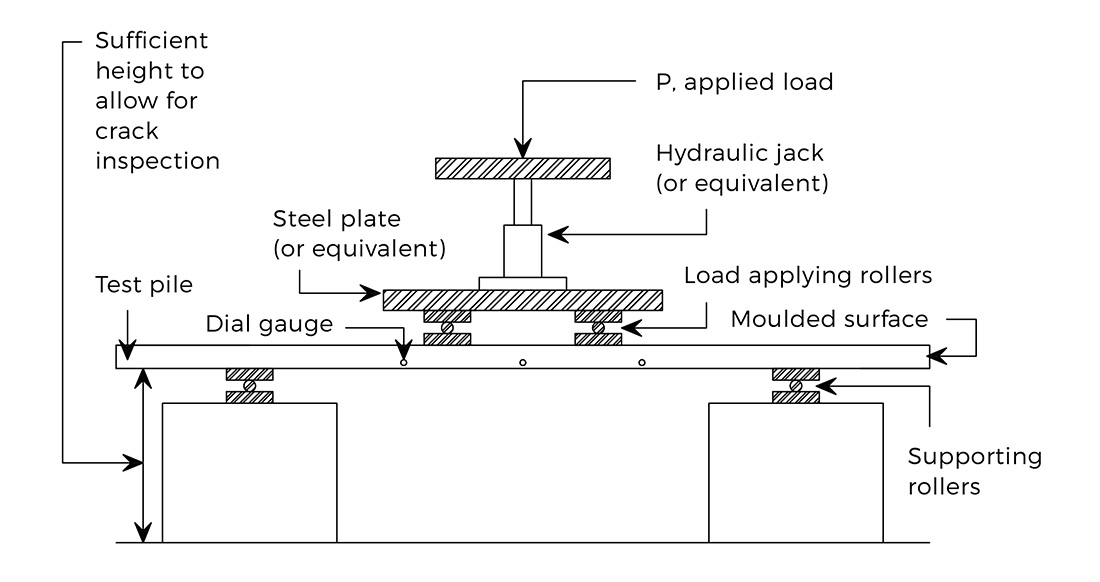

BENDING TEST : MS1314 Compliance

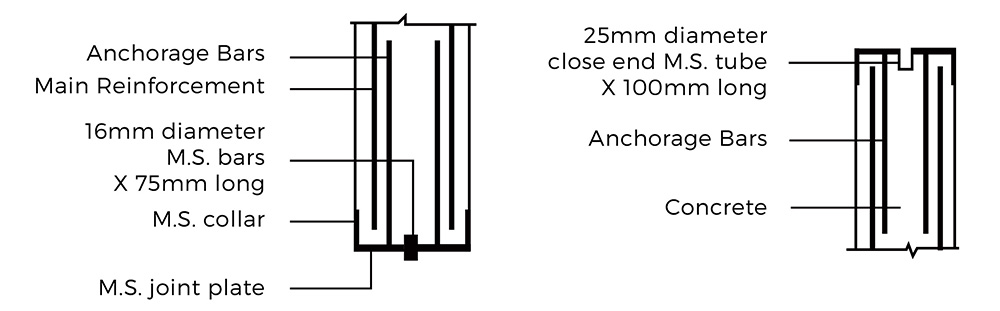

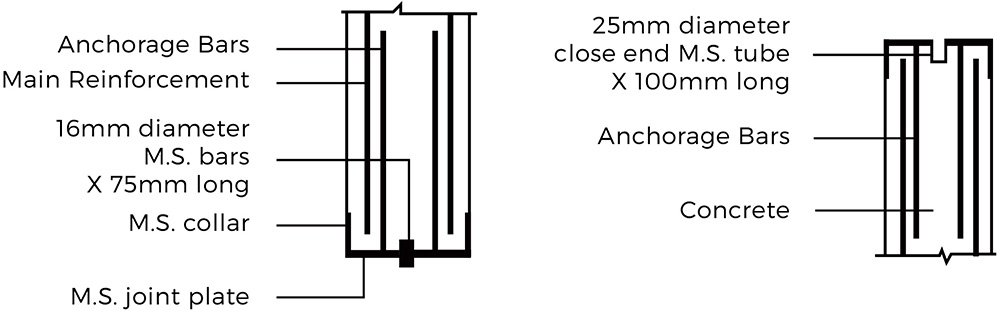

Standard Pile Joint


All joining by means of full weld all round

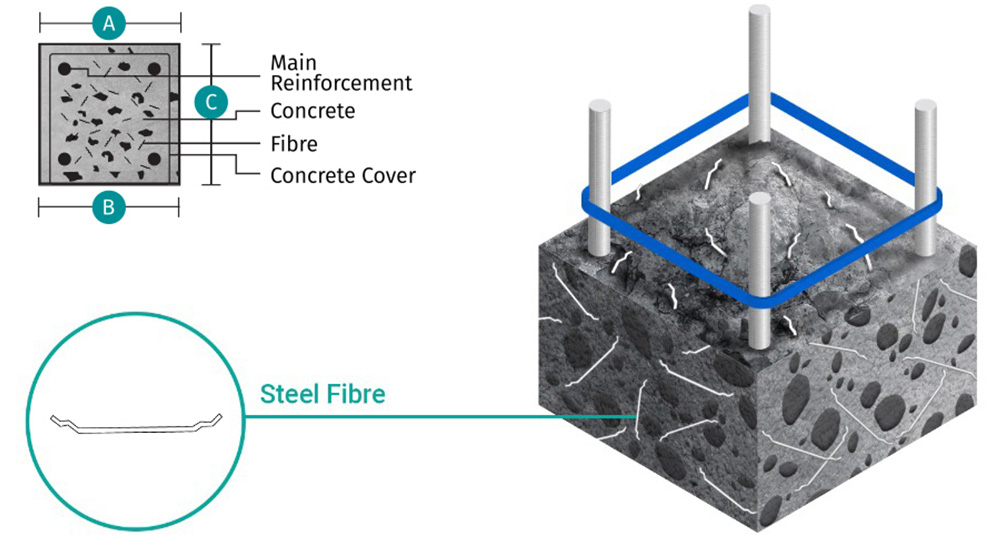

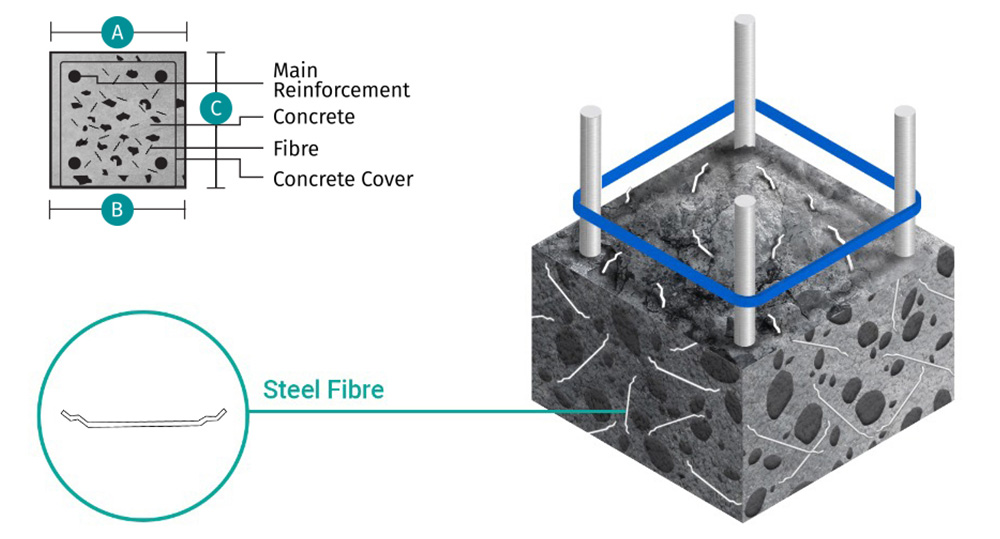

Cross Section

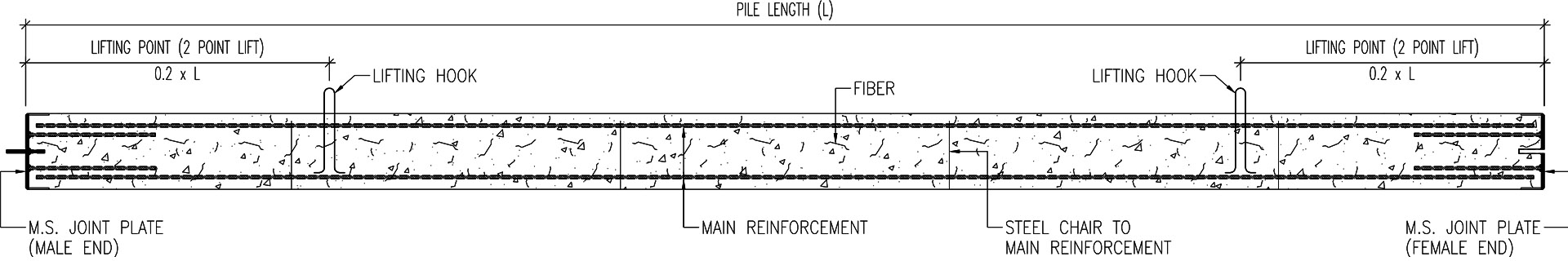

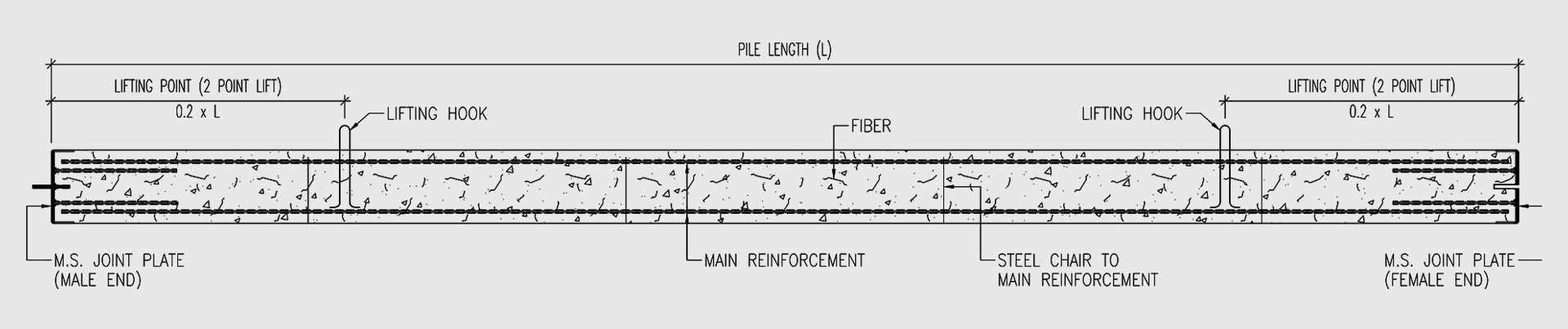

Typical Extension Pile


contact us & learn more about us

Looking for a reliable & stable partner?

Product Specifications


Dimension

Size (mm) 125 x 125 150 x 150 175 x 175 200 x 200 230 x 230 250 x 250
Length (m) 6,3 6,3 6,3 9,6,3 9,6,3 12,9,6,3
A (mm) 128 153 178 204 234 254
B (mm) 122 147 172 196 226 246
C (mm) 125 150 175 200 230 250
Main reinforcement bar nos. x dia. (mm) 4 x Y9 4 x Y9 4 x Y9 4 x T10 4 x T12 8 x T10
Link Diameter (mm) 4.5 4.5 4.5 4.5 5.5 5.5
Plate Thickness (mm) 4.5 4.5 6 6 6 8
Concrete cover (mm) 30 30 30 30 30 40

Axial Load Capacity

Max safe structural
working load (tonnes)
Concrete
grade 50
26 35 46 61 81 97
Recommended
working load (tonnes)
Concrete
grade 50
21 28 37 48 65 80

Dimension

Size (mm) 280 x 280 300 x 300 350 x 350 380 x 380 400 x 400 450 x 450
Length (m) 12,9,6,3 12,9,6,3 12,9,6,3 12,9,6,3 12,9,6,3 12,9,6,3
A (mm) 284 305 355 385 405 455
B (mm) 276 295 345 375 395 445
C (mm) 280 300 350 380 400 450
Main reinforcement bar nos. x dia. (mm) 4 x T16 4 x T16 4 x T20 4 x T20 4 x T20 4 x T25
Link Diameter (mm) 5.5 5.5 6 6 6 6
Plate Thickness (mm) 8 8 9 9 9 12
Concrete cover (mm) 40 40 40 40 40 40

Axial Load Capacity

Max safe structural
working load (tonnes)
Concrete
grade 50
122 140 191 222 244 313
Recommended
working load (tonnes)
Concrete
grade 50
100 115 160 185 205 275
